Rolling Bearing
Deep groove ball bearing
1 row, 2 rows, covered, sealed metric series 60.., 62.., 63.., 64.., 160.., 161.., 618.., 619.., 622.., 623.., 42.., 43.. Series imperial : KLNJ (R), LJ (RLS), MJ (RMS)Widespread use because of the price/performance ratio, numerous variants and sizes, special design, special greasing, etc.Application: Electric motor, trailer wheels, household electrical appliances, woodworking machines, small reduction gears, manual transmissions and much more.
Angular contact ball bearings 1 - row
Series 70.., 72.., 73.., 719.., Always installed opposite a roller bearing of the same type. get the Shaft has high rigidity, especially under preloadApplication: Gears, Machine tool spindles
Angular contact ball bearings 2 - row
Series 30.., 32.., 33.., 52.., 53.. Capable of taking axial loads in both directions. In some cases it can Take over the role of two single bearings, covered, sealedApplication: Transmissions, vehicle wheels, agricultural machinery
Angular contact ball bearing 2 – row
Series 30.., 32.., 33.., 52.., 53.. Capable of taking axial loads in both directions. In some cases, it can also play the role of two single bearings, covered, sealed
Application: Transmissions, vehicle wheels, agricultural machinery
Angular contact ball bearing 2 – row
cylindrical, conical, sealed Series metric 12.., 13.., 22.., 23.., 112.., 113.. Series imperial NLJ.., NMJ.. the hollow spherical track of the outer ring allows a swivel angle.A variant with a tapered bore facilitates installation.Application: long and flexible waves
Spherical roller bearing
Series 70.., 72.., 73.., 719.., Always installed opposite to a rolling bearing of the same type. Providing the Shaft a high rigidity, especially under preload.Application: Gearboxes, machine tool spindles
Cylindrical roller bearing
Series metric N, NU, NJ, NF, NUP Series imperial LRJ, LRJA, LLRJ, MRJ, MRJA, MMRJ, and so forth. Excellent absorption capacity from short-term overloads and shocks. Very easy installation due to separately mountable rings. Specific designs can accommodate axial displacements or low axial loads.Application: large electric motor, wagon axle bearing, rollers, pressure rollers, and much more.
Taper roller bearing 1 – row
Series 30.., 32.., 33.., 52.., 53.. Can absorb axial loads in both directions. Can in some cases also take over the role of two individual bearings, covered, sealedApplication: Transmissions, vehicle wheels, agricultural machinery
Taper roller bearing 2 – row
Capable of supporting axial loads in both directions, often playing the role of two single bearings.Application: Vehicle wheels,railway axle bearings (e.g. TGV)
Axial ball bearings
Series 511.., 512.., 513.., 514.., 522.., 523.., 524.., 532.., 533.., 534.. Only absorb axial loads. Must be combined with a radial bearing.Application: Vertical shaft, tailstock spindle, centrifugal pump
Axial roller bearings
Series 811.., 812.. Only absorb axial loads. Must be combined with a radial bearing.Axial spherical roller bearings
Series 292.., 293.., 294.. Absorb radial and axial loads and allow misalignment.Application: heavy vertical shaft, turbogenerator, crane pin, extruder screw
Needle cages

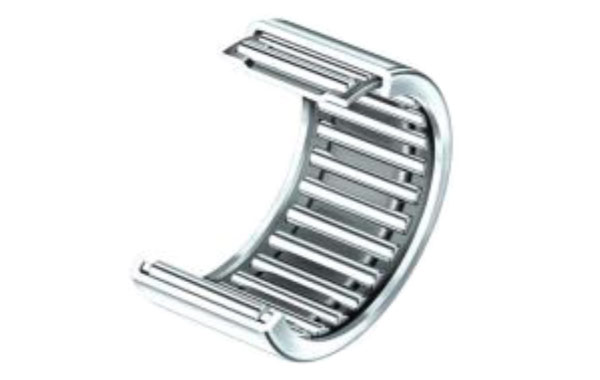

Series K, KT, K…S, KMJ, K….ZW, PCJ, PK, KBKNeedle sleeves
Series HK, HMK, HK…ZWD, HMK … ZWD, HK … LLNeedle bushings
Series BK, BK … ZWDAxial needle roller bearings
AS, WS, GS, AXKCombined needle roller bearings
NAXKInner
Series IR, IRT, MISolid needle roller bearings
Needle bearings NK/NKI .., RNA/NA 48.., RNA/NA 49.., RNA/NA 69.., NKJS.., NKS.., RNAO/NAO..Cam rollers, support rollers
Series KR, KRV, NATR, NATV, NUKR, NUTR whether or not sealed, outer jacket spherical and cylindrical, metric and inch dimensions.
Bearing inserts
Series UC2.., UC3.., SB.., SA.., HC.., GSH.. UK... Available according to European standard as well as Japanese standard. 3-fold seal, high temperature version
Pillow block units
Series UCP…, UCPA…, SW.., SWG.., PASE.., RASE…, PSHE.. Available according to European standard as well as Japanese standard.2 – Hole flange bearing housing unit
Series UCFL…, RCJT.., RCJTZ.., FLCTA, and much more. Available according to European standard as well as Japanese standard.4 – Hole flange bearing housing unit square
Series UCF.., RCJ.., PCJ.., and much more. Available according to European standard as well as Japanese standard. Also available with cast iron or steel cover for shaft end and continuous shaft: C-UCF, CM-UCF...
4 Hole flanged housing unit round
Series UCFC.., PME.., RME.., PFE.., RFE.. Available according to European standard as well as Japanese standard. Also available with cast iron or steel cover for shaft end and continuous shaft: C-UCFC, CM-UCFC...
3 – Hole flanged housing unit
Series DFW.., PCFTR..
Chuck bearing units
Series UCT…, UKT…, PHE…, RHE…, UCC…, RTUE.., TU..TF. Available according to European standard as well as Japanese standard.Pillow block and flanged housings
Made of sheet steel, Series PB, PBY, RAT, RATY, RATR, RATRY
Silver Series
Series MUFL…, UFL…, KFL...
Insert bearing stainless
Series UC 2.. SS
Plastic standing and flange bearing housing
Series UCP 2..PP, UCFL 2..PP, UCF 2..PP
Stainless plummer block and flanged housings
Series UCP 2..SS, UCFL 2..SS, UCF 2..SS
Pillow block housing made of grey cast iron
Partly also available in ductile iron Series SNHF, SNF, SNL, SAF, S30.., SD31..,
Pillow block housing
Series TVN 2, TVN 3.., TN
3 – Hole flange bearing housing
Series I-1200.., TIL 500 K
4 – Hole flange bearing housing
Series 722500DA/DB, 722500 AZ/BZ
Strut bearing housing
Series SPA, TH, SBL
Block bearing housing for fans
Series BL-W, PDN, PDNF
Linear technology
Linear guides, ball screws, steel shafts, ball bushings, etc.
Pivot bearing
Also sealed, maintenance-free, Niro series GE..DO(ES), GE..UK, GE..FO, GE..HO, GE..LO, GE..AW, GE..FW,
GE..SX, GE..AX, GE..SW
Rod ends
Female thread, male thread, relubricable, maintenance-free Series GIR..DO/UK, GIL..DO/UK, GIKFR..PB/PW, GIKFL..PB/PW
GAR..DO/UK, GAL..DO/UK, GAKFR..PB/PW, GAKFL..PB/PW
Spherical plain bearings screwable, weldable
Series GIHNK..LO, GIHRK..DO, GK..DO, GF..DO
High temperature rolling bearings
Furnace design, sealed, covered series 60.., 62.., 63.., 60/62/63.. FT150/HT200, ….F600
HT-UC 2.., HT-HC2.. low temperature also possible
Stainless deep groove ball bearings
Series SS 60..-2RS, SS 62..-2RS, SS 63..-2RS Also food-safe possible
Plain bearing bushes
Maintenance-free, regreasable series DU…, DU….TFF, DX…., WZ.., BNZ…, BNZF...
DIN cover and eye bearings
Series DIN 502, DIN 503, DIN 504, DIN 505A, DIN 505L
Wire straightening rollers, profile rollers
According to customer drawing V - profile, round profile, flat profile
Stainless deep groove ball bearings
Series H2.., H3.., H23.., H31.., AH…, AOH…, H….H (OH), KM.., HM.., HMT.., HMS...
